WJ-8 Elastic Clip Rail Fastener System
WJ-8 Type Fasteners System is a kind of ballastless track fastener system developed to meet the technical requirements of passenger line, it is a special fastener system for laying all kinds of non-shoulderless track, which is optimized based on WJ-1 type fasteners system and WJ-2 Railroad tie fasteners system.
Product Description
WJ-8 Type Fasteners System is a kind of ballastless track fastener system developed to meet the technical requirements of passenger line, it is a special fastener system for laying all kinds of non-shoulderless track, which is optimized based on WJ-1 type fasteners system and WJ-2 Railroad tie fasteners system. The fastener system can be applied to sleeper-buried (double-block sleepers and long sleepers) and slab ballastless tracks on bridges, tunnels and subgrades.

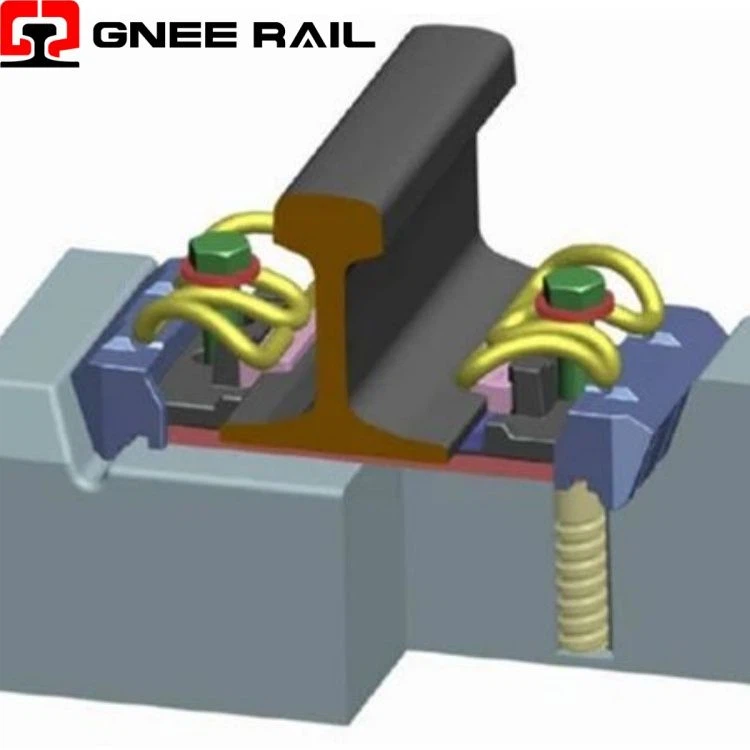

WJ-8 type The fastener system consists of a screw spike, a flat washer, a rail clip, an insulating block, a gauge baffle, a rail under the pad, an iron rail pad, an rail pad under the iron rail pad, and a pre-embedded sleeve positioned on the concrete sleeper or track plate. When the rail height is adjusted, the height-adjusting pad is used (the height of the rail is lowered and the height of the iron rail pad is lowered).
Specifications for ONE Unit of WJ-8 Rail Fastening System
|
Item |
Quantity |
Material |
|
Rail clip |
2 |
60Si2MnA |
|
Screw spike |
2 |
20MnTiB |
|
Flat washer |
2 |
Q235A |
|
Rail Insulator |
2 |
PA66 |
|
Guide plate |
2 |
Reinforced Nylon 66 (PA66) |
|
Rail pad |
1 |
EVA, or rubber |
|
Tie plate |
1 |
QT450-10 |
|
Plastic dowel |
2 |
HDPE, Reinforced Nylon 66 (PA66) |
|
Rail Adjustable Pad |
2 |
PE |
|
Tie Plate adjustable pad |
2 |
PE |
Application of WJ-8 Type Fasteners System
- The WJ-8 rail fixing system is widely used on high-speed rail lines and is compatible with the CRTS series ballastless track, ensuring stability during high-speed operation.
- The WJ-8 elastic clip fastener system is suitable for passenger-dedicated lines and intercity railways, meeting the demands of heavy axle loads and high-frequency operations.
- The WJ-8 clip rail fasteners are compatible with a variety of rail types, providing a standardized fastening solution for both existing line renovation and new construction projects.
