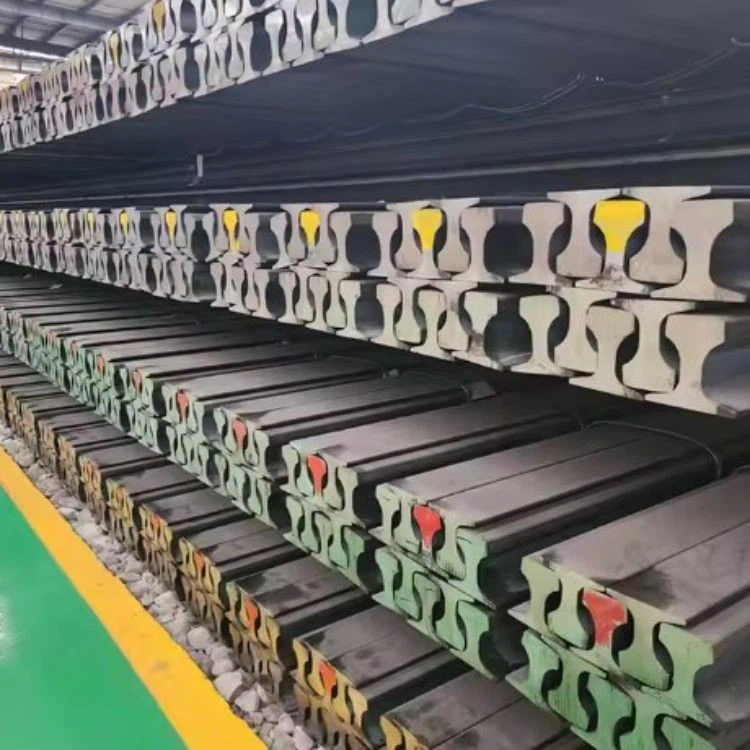

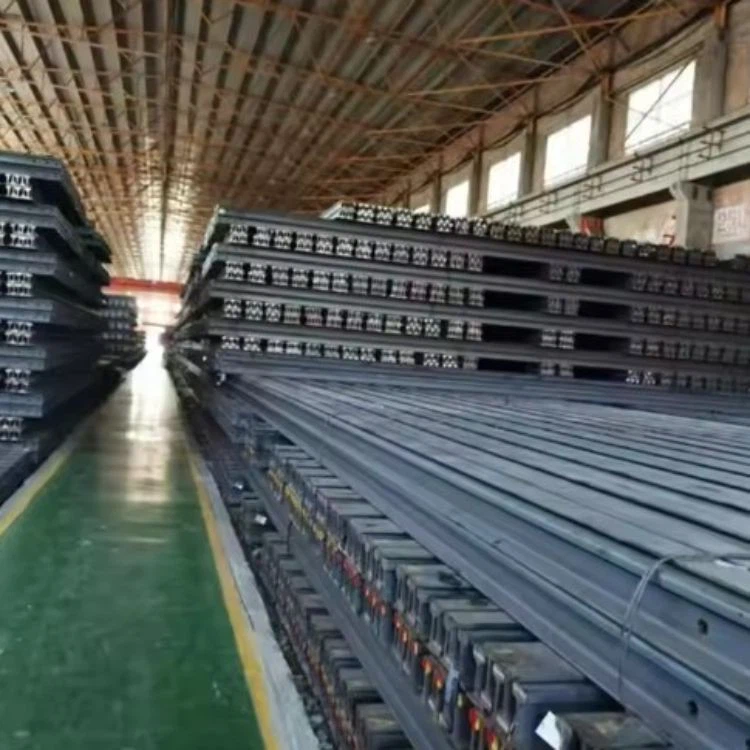

UIC60 Railway Steel Rail
size: ulC60 Steel Rail/60El Rail
Standard: EN 13674-1
Material:900A/1100
Type: Heavy Rail
Head width:72mm
Base width:150mm
Height:172mm
Length:12-25m
Nominal weight: 60.2lkg/m
Product Introduction
The 60E1 (UIC60) rail model is manufactured according to the European standard EN 13674-1. It is used for railroad construction. This is a type T section rail (flat botom rails) with a 60.21 kg mass per meter. For a standard track is used the 60E1/UIC60 rail for medium and heavy load traffic.
The origin of the standard for the manufacture of this type of Steel Track comes from the International Union of Railways, founded in 1922, with the objective of promoting the global rail traffic and confront the transportation challenges and promote the sustainable development.
The UIC plays an important role in the pieces standardization for the railways construction, and the 60E1/UIC60 rail is the best example of this.
Product Specifications
- size: UIC 60 Steel Rail/60El Rail
- Standard: EN 13674-1
- Material:900A/1100
| Profile | Standard | Dimensions mm | Section S | Mass m | ||||
|---|---|---|---|---|---|---|---|---|
| H | B | C | D | E | cm² | kg/m | ||
| 60E1 (UIC60) | EN 13674 – 1 | 172,00 | 150,00 | 72,00 | 51,00 | 16,50 | 76,70 | 60,21 |
Mechanical Properties of UIC60 Rail:
| Standard | Steel Grades | Mechanical Properties | ||
| Rm MPa | min A5 % | HB | ||
| EN 13674 - 1 (2006) | ||||
| R200 | min 680 |
14 | 200 - 240 | |
| R260 | min 880 |
10 | 260 - 300 | |
| R260 MN | min 880 |
10 | 260 - 300 | |
| R350 HT | min 1175 |
9 | 350 - 390 | |
Product Application
UIC 60kg rail has good comprehensive mechanical properties and is suitable for railway sections with complex stress, and is widely used along railway lines in various countries. 60 kg rail can be used for laying main railway lines, seamless railway lines, mines, shaft tracks, crane tracks, port, construction site light vehicle transport tracks, etc.
GNEE RAIL focuses on the global rail trade, with the core mission of "adapting to diverse scenarios and streamlining procurement processes." We offer heavy rail, light rail, and crane rails in various specifications and standards, covering diverse rail applications from heavy industrial plants to light logistics feeder lines.
Leveraging our extensive foreign trade service experience and resource network, we help clients overcome geographical and process barriers in cross-border procurement, ensuring a stable supply of rail products and providing strong support for the advancement of global rail-related businesses.
