Why Choose GNEE RAIL

Established in 2008, GNEE RAIL manufactures and supplies steel rails, crane rails, railway fastening systems, and track components for railway, port, mining, and industrial projects. Our manufacturing process combines standardized production, quality inspection, and engineering support to meet project-specific technical requirements.

✔International Standards: Products are manufactured in accordance with AREMA, UIC, EN, DIN, BS, JIS, and GB standards, with standard and customized specifications available.

✔Quality Inspection: Quality control covers material verification, mechanical testing, dimensional inspection, and non-destructive testing. EN 10204 3.1 Mill Test Certificates (MTC) and third-party inspection services are available upon request.

✔Manufacturing Services: Processing services include cutting, drilling, machining, surface treatment, and export packaging based on customer drawings and technical requirements.

✔Export Packaging & Logistics: Products are packed according to export and project requirements, with complete shipping documentation and loading arrangements for international transportation.

Steel Rails By International Standards

Americas Standard Rails
GB & Asia-Pacific Standard Rails
European Standard Rails
GOST Standard Rails
Tram Rails

Americas Standard Rails

Standard: ASTMA1, AREMA
Size	Dimension(mm)				Weight	Material	Length (m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	(kg/m)	Material	Length (m)
ASCE 25	38.1	69.85	69.85	7.54	12.4	700	6m-12m
ASCE 30	42.86	79.38	79.38	8.33	14.88	700
ASCE 40	47.62	88.9	88.9	9.92	19.84	700
ASCE 60	60.32	107.95	107.95	12.3	29.76	700
ASCE 75	62.71	122.24	122.24	13.49	37.2	900A/1100	12m-25m
ASCE 85	65.09	131.76	131.76	14.29	42.17	900A/1100
90RA	65.09	142.88	130.18	14.29	44.65	900A/1100
115RE	69.06	168.28	139.7	15.88	56.9	900A/1100
136RE	74.61	185.74	152.4	17.46	67.41	900A/1100
175LBs	109.86	152.4	152.4	38.1	86.8	900A/1100

GB & Asia-Pacific Standard Rails

Standard: GB11264-89
Size	Dimension(mm)				Weight	Material	Length(m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	(kg/m)	Material	Length(m)
GB6KG	25.4	50.8	50.8	4.76	5.98	Q235B	6m-12m
GB9KG	32.1	63.5	63.5	5.9	8.94	Q235B
GB12KG	38.1	69.85	69.85	7.54	12.2	Q235B/55Q
GB15KG	42.86	79.37	79.37	8.33	15.2	Q235B/55Q
GB22KG	50.3	93.66	93.66	10.72	23.3	Q235B/55Q
GB30KG	60.33	107.95	107.95	12.3	30.1	Q235B/55Q
Standard: YB222-63
Size	Dimension(mm)				Weight	Material	Length(m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	(kg/m)	Material	Length(m)
8KG	25	65	54	7	8.42	Q235B	6m-12m
18KG	40	90	80	10	18.06	Q235B/55Q
24KG	51	107	92	10.9	24.46	Q235B/55Q
P38KG	68	134	114	13	38.733	U71Mn	12.5m-25m
P43KG	70	140	114	14.5	44.653	U71Mn
P50KG	70	152	132	15.5	51.514	U71Mn
P60KG	73	170	150	16.5	61.64	U71Mn
Standard: YB/T5055-93
Size	Dimension(mm)				Weight	Material	Length (m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	(kg/m)	Material	Length (m)
QU 70	70	120	120	28	52.8	U71Mn	12
QU 80	80	130	130	32	63.69	U71Mn
QU 100	100	150	150	38	88.96	U71Mn
QU 120	120	170	170	44	118.1	U71Mn
Standard: JIS E1101-91/JIS E 1101-93
Size	Dimension(mm)				Weight	Material	Length(m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	(kg/m)	Material	Length(m)
JIS 15KG	42.86	79.37	79.37	8.33	15.2	JIS E standard	9m~19m
JIS 22KG	50.8	93.66	93.66	10.72	22.3
JIS 30KG	60.33	107.95	107.95	12.3	30.1
JIS 37A	62.71	122.24	122.24	13.49	37.2		10m~25m
JIS 50N	65	153	127	15	50.4
CR 73	100	135	140	32	73.3
CR 100	120	150	155	39	100.2
Australian Railway standard:AS1085
Size	Dimension(mm)				Weight	Length(m)	Material
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	(kg/m)	Length(m)	Material
31KG	63.5	117.5	108	11.5	31.5	8m-25m	900A/1100
47KG	70	141.3	127	14.3	46.5
50KG	70	154	127	15	50.8
60KG	70	170	146	16.5	61
68KG	73.4	186	152	17.5	67.6
73KG	70	157	146	32	73.63
86KG	102	102	155	84.11	85.5
89KG	102	114	178	51	89.81

European Standard Rails

Standard: UIC860
Size	Dimension(mm)				Weight	Material	Length (m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	(kg/m)	Material	Length (m)
UIC50	70	152	125	15	50.46	900A/1100	12m-25m
UIC54	70	159	140	16	54.43	900A/1100
UIC60	74.3	172	150	16.5	60.21	900A/1100
Standard: EN 13674-1-2003
Size	Dimension(mm)				Weight	Material	Length (m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	(kg/m)	Material	Length (m)
49 E1	67	149	125	14	49.39	R260/R350HT	12m~25m
49 E2	67	148	125	14	49.1
50 E1	65	153	134	15.5	50.37
50 E2	72	151	140	15	49.97
50 E4	70	152	125	15	50.46
50 E5	67	148	135	14	49.9
50 E6	65	153	140	15.5	50.9
54 E1	70	159	140	16	54.77
54 E2	67.01	161	125	16	53.82
54 E3	67	154	125	16	54.57
55 E1	62	155	134	19	56.03
60 E1	72	172	150	16.5	60.21
Standard: DIN536
Size	Dimension(mm)				Weight	Material	Length (m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	(kg/m)	Material	Length (m)
A55	55	65	150	31	31.8	900A	10m~12m
A65	65	75	175	38	43.1
A75	75	85	200	45	56.2
A100	100	95	200	60	74.3
A120	120	105	220	72	100
Standard: BS11: 1985
Size	Dimension(mm)				Weight	Material	Length (m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	(kg/m)	Material	Length (m)
50 O	52.39	100.01	100.01	10.32	24.833	700	6m~18m
60 A	57.15	114.3	109.54	11.11	30.618	900A	6m~18m
75 A	61.91	128.59	114.3	12.7	37.455		8m~25m
75 R	61.91	128.59	122.24	13.1	37.041
80 A	63.5	133.35	117.47	13.1	39.761
80 R	63.5	133.35	127	13.49	39.674
90 A	66.67	142.88	127	13.89	45.099
100 A	69.85	152.4	133.35	15.08	50.182
113 A	69.85	158.75	139.7	20	56.398

GOST Standard Rails

Rail Type	Height (mm)	Base (mm)	Head Width (mm)	Web (mm)	Steel Grade	Mass (kg/m)
P50	152	132	72	16	50Mn/U71Mn	51.8
P65	180	150	75	18	50Mn/U71Mn	64.88
P75	192	150	75	20	50Mn/U71Mn	74.41
KP70	120	120	70	23	U71Mn	52.8
KP80	130	130	80	28	U71Mn	63.96
KP100	150	150	100	34	U71Mn	88.96
KP120	170	170	120	40	U71Mn	118.1
KP140	170	170	140	58	U71Mn	141.7

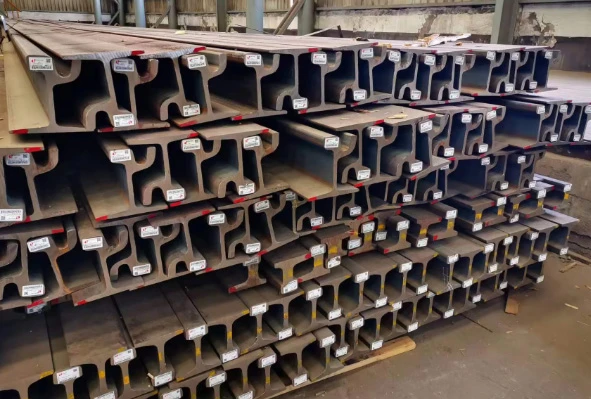

Tram Rails

Size	Height (mm)	Bottom (mm)	Head A (mm)	Head B (mm)	Channel A (mm)	Channel B (mm)	Web (mm)	Weight (kg/m)
59R1	180	180	113	56	42	15	12	58.97
59R2	180	180	113	55.83	42.52	14.65	12	58.14
60R1	180	180	113	56	36	21	12	60.59
60R2	180	180	113	55.83	36.34	20.83	12	59.75

Request Grooved Rail Price
