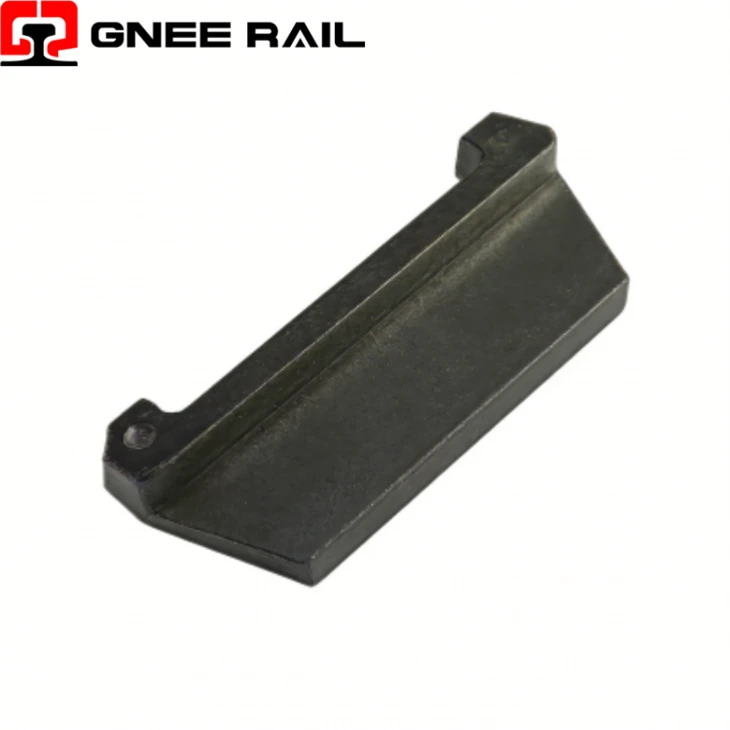

Rail Angle Guide Plate Insulator

Rails are main parts of the rail tracks. They lead the train and transfer the pressure of the wheels to the sleepers. It must have a continuous smooth surface with minimum resistance. Currently in the electrified railways or automatic block zone the two rails double as signal lines of track circuits and loop line for locomotive traction. So rails must be insulated in case of stray current interference. Usually insulators and insulated rail joints are used in rail tracks.

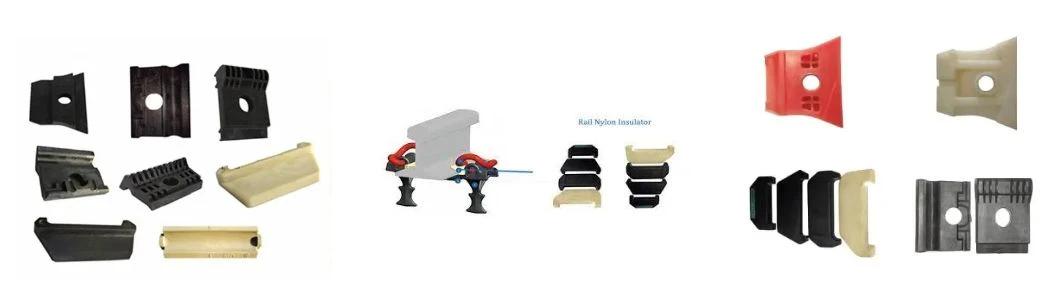

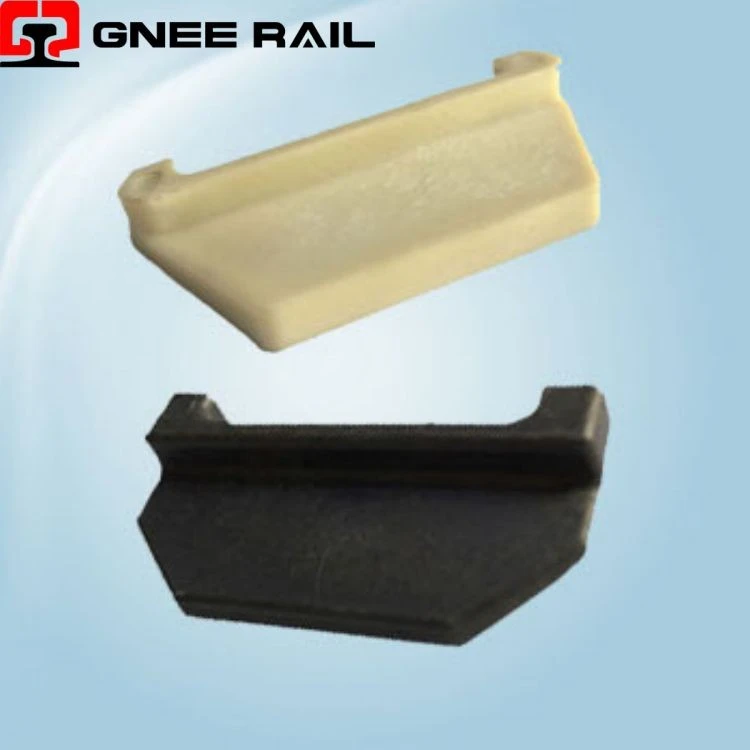

The insulators apply to rails such as 60kg (UIC) rail, 52kg rail, 136RE Rail, 90R, 75R, 50R, 60R etc. The rail insulator is mainly made by injection molding production, and it is mainly composed of Nylon-6 or Nylon-66 with glass filler content 20% to 35% depending on specification. These material are UV stabilized and available in natural color or as per requirement.

Rail insulators are key part of the track fastening systems, the rail insulators made by GNEE RAIL are made of high-quality plastic, which has higher heat resistance, wear resistance, mechanical strength and rigidity.

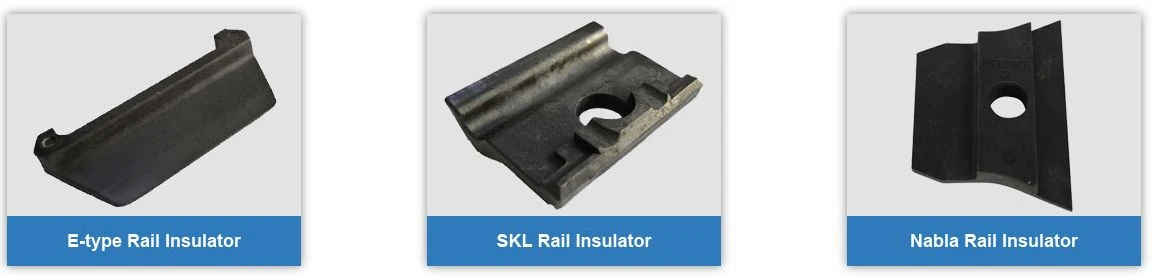

Rail insulators for E type Fastening System

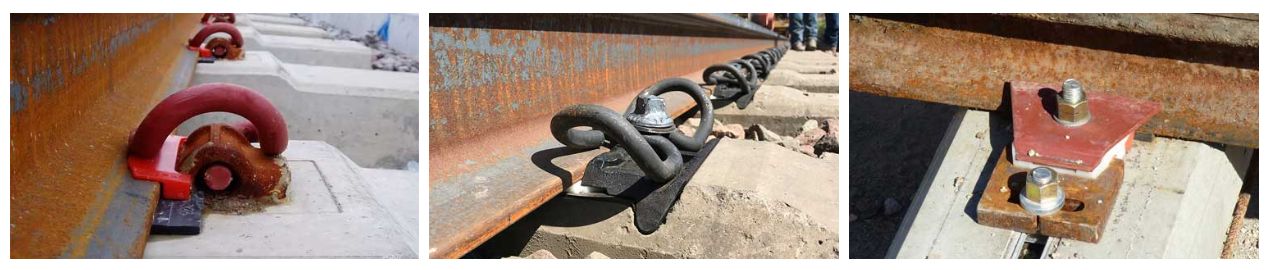

E-type rail insulators are used in E-clip fastening systems, together with E-clips, rail shoulders and rail pads, whose function is to cushion the passing train's stress onto the rail and make the rail back to position afterwards.

Item	Component	Photo	Types
1	Rail Clip		E1809, E2052, E1804, E2055, E2005, E2006
2	Casting Insert		According to customer's drawing
3	Rail Insulator		According to customer's drawing
4	Rail Pad		According to customer's drawing

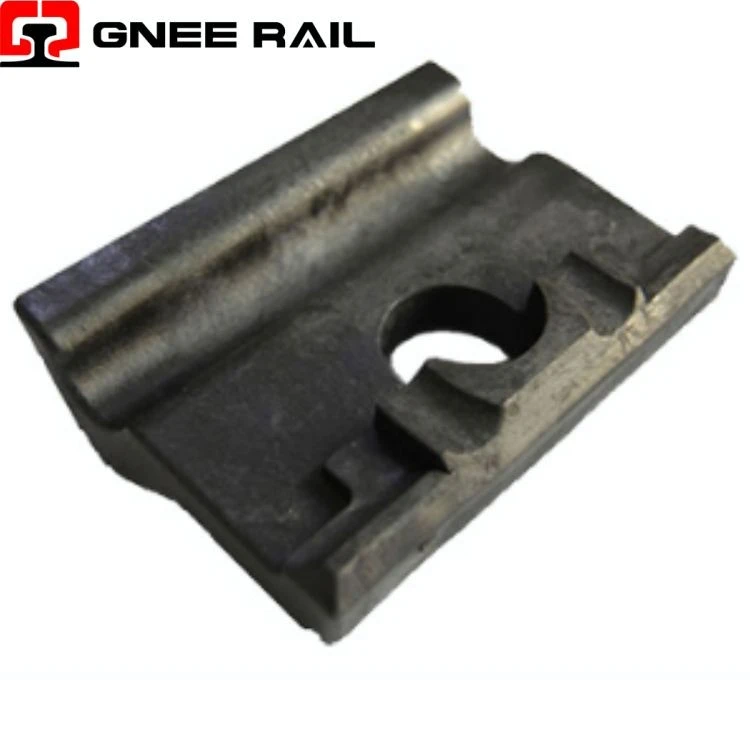

Rail Insulator for SKL Rail Clip Fastening System

The Vossloh angled guide plates lead the forces introduced into the rail by train in the base plate first and then into the concrete. In this way, the screw-dowel combinations are not loaded by shearing and bending forces. The design additionally supports the tilting protection. Different widths can regulate the gauge.

Item	Component	Types	Photo
1	Rail Clip		SKL1, SKL3, SKL14, SKL21
2	Screw Spike		Ss25, Ss35, DHS35, Ss8
3	Rail Dowel		Sdu9, Sdu25, Sdue S3
4	Angle Plate		Wfp14k, Wfp21k
5	Rail Pad		Zw600, Zw700

Rail Insulator for Nabla Rail Clamp Fastening System

Nabla rail insulators are used in Nabla clip rail fastening systems, working together with other fastener parts including Nabla clips, screw spikes and spring washers.

Item	Component	Photos	Types
1	Nabla Clip		Nabla C1, Nabla S1
2	T Bolt &Nut &Washer		M22, Grade 5.6/8.8
3	Rail Insulator		According to customer's drawing
4	Rail Pad		Rubber

Precautions for using rail insulators include proper handling and storage to prevent damage, ensuring clean and well-maintained track beds to prevent insulation failure, regular inspection and replacement of faulty units, and adherence to all safety protocols when working on or near electrified lines. Additionally, environmental factors and regulatory compliance must be considered during selection and maintenance.

Installation and handling

• Handle with care: Use a lifting beam for handling and installation to prevent damage, as prefabricated joints can be fragile.

• Store properly: Store joints on timber blocks to allow air circulation and prevent moisture buildup.

• Use designated points: When lifting joints with equipment like rail scooters, only use the designated lifting points marked on the joint.

Maintenance and inspection

• Regular inspections: Conduct routine inspections to check for any damage or deterioration that could compromise the insulator's function.

• Prompt replacement: Replace damaged or worn insulators immediately to prevent electrical failures or accidents.

• Cleanliness: Keep the surfaces of insulators and the surrounding track clean to prevent buildup of dirt, which can lead to voltage fluctuations or other issues.

• Track maintenance: Pay close attention to the track bed around the joint. Poorly maintained rail tops or voids can lead to insulation failure and rail end lipping.

• Correct ballast: Use clean, high-quality ballast for reballasting work and ensure it is properly consolidated.

Prior to shipment packaging of railway fasteners, products must be categorized by application (such as rail connection, sleeper fixation, etc.). For fasteners with threaded holes (e.g., gauge plates, connecting steel plates), insert dust-proof rubber plugs into the holes to prevent dust and debris from affecting installation. For elongated fasteners (e.g., extended bolts), attach plastic protective caps to both ends to avoid bending or deformation during transportation. All sorted products are grouped in fixed quantities, bundled into neat rectangular units using elastic straps, and separated by cardboard between groups. The entire assembly is then placed into a five-layer corrugated cardboard box. The bottom of the box is lined with thick foam boards, and the top is covered with bubble film to ensure adequate cushioning for each product group.

Contact now

GNEE RAIL is a backbone enterprise in the manufacture of railway fasteners and standard parts in China, holding production licenses issued by the Ministry of Railways. Leveraging advanced composite forging technology and high-precision testing instruments, we ensure comprehensive product performance. Custom manufacturing is fully available based on customer drawings or samples.
