What is the hardness of railway clip
Oct 13, 2025
The rail elastic clip is used for fastening the rails and the tie plate on concrete sleeper. Using the material of forged spring steel, rail clips are produced by hot forging process.
The hardness of a railway clip is typically between 41 and 48 HRC (Rockwell Hardness C scale), achieved through a heat-treatment process to give it the necessary strength and durability. This hardness range ensures the clip can withstand the repeated stress from passing trains without breaking or deforming excessively.
Rail Elastic Clip Fabricated by gNEE RAIL
Fabricated with high quality raw material-forged spring steel using hot forging process, GNEE RAIL manufactures and exports following types of elastic rail clips:

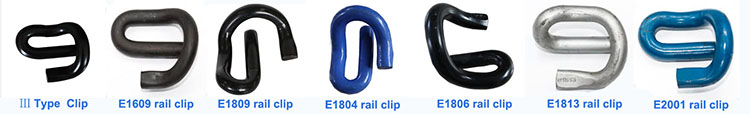

E type clip Types and Specification:
| Model | Ⅲtype rail clip | E1609 rail clip | E1809 rail clip | E1804 rail clip | E1806 rail clip | E1813 rail clip | E2001 rail clip |
|---|---|---|---|---|---|---|---|
| Spec. | ø18 | ø16 | ø20 | ø18 | ø18 | ø18 | ø20 |
| Hardness | 44-48HRC | 44-48HRC | 44-48HRC | 44-48HRC | 44-48HRC | 44-48HRC | 44-48HRC |

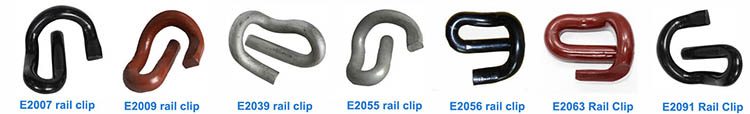

| Model | E2007 rail clip | E2009 rail clip | E2039 rail clip | E2055 rail clip | E2056 rail clip | E2063 Rail Clip | E2091 Rail Clip |
|---|---|---|---|---|---|---|---|
| Spec. | ø20 | ø20 | ø20 | ø20 | ø20 | ø20 | ø20 |
| Hardness | 44-48HRC | 44-48HRC | 44-48HRC | 44-48HRC | 44-48HRC | 44-48HRC | 44-48HRC |
Vossloh SKL Clamp Specification：
| Model | SKL 1 Rail Clamp | SKL 3 Rail Clamp | SKL 12 Rail Clamp | SKL 14 Rail Clamp |
|---|---|---|---|---|
| Spec. | ø13 | ø13 | ø13 | ø14 |
| Hardness | 42-47HRC | 42-47HRC | 42-47HRC | 42-47HRC |

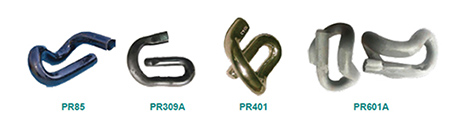

PR Series Clips Specification
| Model | PR85 Rail Clip | PR309A Rail Clip | PR401 Rail Clip | PR415 Rail Clip | PR601A Rail Clip |
|---|---|---|---|---|---|
| Spec. | ø13 | ø19 | ø20 | ø20 | ø22 |
| Hardness | 44-48HRC | 44-48HRC | 44-48HRC | 44-48HRC | 44-48HRC |
Other Rail Clips Specification
| Model | Special rail clip | Russia rail clip | Deenik clip | Anti-vandal clip | Fast clip | GL1419 |
|---|---|---|---|---|---|---|
| Spec. | ø13 | ø18 | ø25 | ø18 | ø15 | ø14 |
| Hardness | - | - | - | - | - | - |
GNEE RAIL can develop and produce various kinds of rail clips such as E-type(E1609, E1809, E1817, E2007, E2009, E2055, etc), SKL tension clips (SKL1, SKL3, SKL12, SKL14, SKL75, etc), PR series, Nabla clips, D type rail clip, Fast clip, gauge lock clip, Deenik clip as well as other standard and non-standard clips can be customized by drawings or samples.
Send your special customization requirements to GNEE.
