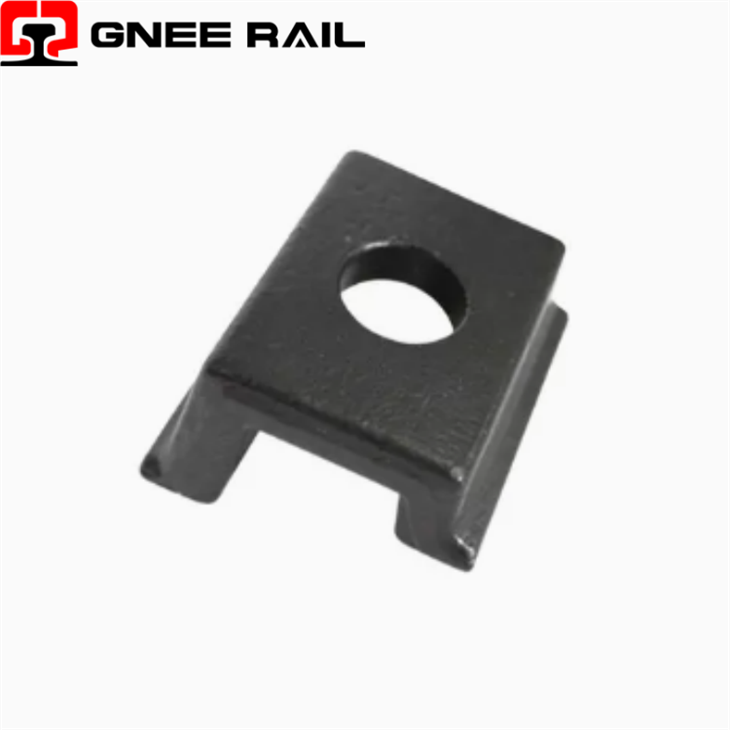

Rail Clamp - Rail Fastening
Product:Rail Clamp
Standard: GB, DIN, ISO, ANSI/ASTM, B7, BS, JIS etc
Surface: Plain, black painting or upon customer requirement
Packing: Woven Bag/Kegs and Pallet/wooden box or upon customers
what is a rail clamp?
A rail clamp is a device used in two main ways: to fix a railway rail to a sleeper for track stability, or to physically stop a train or railcar from moving past a certain point. The first type is a component of the railway fastening system, keeping the track stable and maintaining the correct gauge, while the second is a temporary or stationary block that prevents unwanted movement on platforms or stub tracks.
The role of railway clamp in rail fastening system
- Function: To secure steel rails to sleepers (concrete or wooden) and maintain a stable track.
- Purpose: It keeps the track stable, maintains the correct gauge distance, and provides rigidity for safe train operation by constraining the rail's movement.
- Construction: Typically made of forged spring steel or other strong steel alloys, often manufactured using processes like hot forging.
- Examples: Used in systems like the KPO fastening system in conjunction with a tie plate and bolts.
KPO Railway Fasteners System
| Part name | Type | Material | Finish | Remark |
| KPO clip | KPO3, KPO6, KPO9 | Q235 | Plain oiled | Standard: DIN5906 |
| HS bolt | HS26, HS32 | Grade4.6: Q235 | Plain oiled, black oxide, galvanized, hot dip galvanized | Diameter: 22mm or 24mm. |
| Grade5.6: 35# | Length: 55mm, 65mm, 75mm, 90mm | |||
| Grade8.8: 45# | Standard: UIC864-2 | |||
| Hex nut | As ordered | Grade 5: 35# | Plain oiled, black oxide, galvanized, hot dip galvanized | Standard: DIN985 |
| Grade 8: 45# | ||||
| Double coil spring washer | As ordered | 65Mn | Plain oiled, black oxide, galvanized, hot dip galvanized | Standard: UIC864-3 |
| screw spike | M24×150mm | Grade 4.6: Q235 | Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized. | Standard: ISO898-1, UIC864-1 and NF F500-50 |
| M24 ×160mm | Grade 5.6: 35# | |||
| M24 ×180mm | Grade 8.8: 45# | |||
| or other length as ordered | ||||
| Base plate | UIC54,UIC60, 50kg rail, 60kg rail,S49 in ordered size | Casting iron QT500-7, QT450-10, or forging low carbon steel or high carbon steel | Plain oiled | Standard: UIC864-6 |
railroad clamp Specifications
| Name | Rail Clamp |
| Type | Customized |
| Assemblies | base plate, cover plate, t bolt, nut, washer |
| Material | base plate and cover plate: ductile cast iron, cast steel |
| bolt, nut, flat washer: Q235 | |
| spring washer: 60Mn, 60si2Mn | |
| Surface | plain, black, zinc plated, HDG, etc |
| Usage | rail fixing device |
According to clients' requirements, we can offer different kinds of rail clamps, among these clamps, for materials, Q235 by forging, ZG35 of cast steel and QT500-7-cast iron are top 3 choices, based on our former production experiences.
| Name | Rail Clamps | ||
| Material | Q235-forging | ZG35-cast steel | QT500-7-cast iron |
| Chemical composition(%) | C:0.12-0.20, Mn:0.30-0.70, Si:≤0.3, P:≤0.045, S:≤0.045 | C: ≤0.4, Mn:≤0.9, Si: ≤0.5, P:≤0.04, S:≤0.04 | C:3.60-3.80, Mn:≤0.6, Si:2.50-2.90, P:≤0.08, S:≤0.025 |
If you have special requirements for dimensions or higher strength materials, please contact us for special custom production.
rail fastening Packaging & Delivery
Before shipment, the packaging of railway fasteners must go through pre-treatment and internal protection procedures to ensure product integrity and corrosion resistance during transportation and storage.
First, all fasteners are thoroughly cleaned to remove any oil residue or production impurities. Then, a basic anti-rust treatment is applied-commonly by immersing the fasteners in rust inhibitors followed by natural air-drying, or by individually wrapping each component with VCI (Vapor Corrosion Inhibitor) paper. This step effectively isolates the metal surface from moisture and air exposure, preventing corrosion.
Next, fasteners are classified by type and size. Bolts, nuts, and washers of the same model are packed into custom plastic inner boxes, with EPE (expanded polyethylene) foam padding placed at the bottom and around the sides for impact absorption. Each box is clearly labeled with the product name, specification, and quantity to avoid mix-ups.
For larger components such as elastic rail clips or rail gauge blocks, individual kraft paper wrapping is used, leaving an appropriate buffer space to prevent surface abrasion or deformation during handling. This meticulous inner packaging ensures each fastener remains protected, organized, and ready for safe external packing and international shipment.
GNEE RAIL is a professional manufacturer of railway fasteners and standard components in China, holding a production license issued by the Ministry of Railways. With advanced heat treatment technology and high-precision testing equipment, GNEE RAIL establishes a solid foundation for consistent product quality.
Each of our railway fastening products undergoes fatigue load testing and corrosion resistance verification, ensuring reliable performance in mainline railways, urban transit systems, and other demanding environments. We provide customized production services based on customer drawings or samples, with our technical team offering full-process support - from design confirmation and prototype development to mass production and final delivery.
Adhering to the philosophy of "Supplying the Best Products at the Most Competitive Prices," GNEE RAIL delivers durable, precisely engineered, and cost-effective fastening solutions to support global railway construction and maintenance projects.
