E2055 Rail Clip For E Type Railway Fastening System
Size: full rail clip dimension available
Standard: E-type, SKL, KPO, NablaPR, Russia, fast, UIC, BS, JIS,etc.
Surface: Natural, black oiled, red oiled or upon customers
Packing: Woven Bag/Kegs and Pallet/wooden box or upon customers
What is E2055 Rail Clip?
The E2055 rail clip is a type of Pandrol E-type elastic rail clip used to secure railway tracks to sleepers, made from high-strength spring steel. It prevents longitudinal and lateral movement of the rail, ensuring the correct track gauge, and is suitable for both wood and concrete sleepers in various applications, including heavy-haul and high-speed rail.
Key features and functions of E2055 Rail Tension Clip
- Secures rails: The primary function is to firmly clamp the steel rail to the sleeper to hold it in position.
- Prevents movement: It stops the rail from tilting and prevents both lengthwise and sideways displacement.
- Provides flexibility: The clip is designed to be elastic, allowing for some flexibility while maintaining a strong hold.
- Fatigue life: Engineered for long life, with a fatigue life that can reach millions of cycles without breaking.
- Versatility: Used in a wide range of global rail projects, from conventional ballasted tracks to other specialized applications.
Specification of e2055 railway elastic clip
The E 2055 rail clip is specifically designed to provide effective and reliable fastening for various types of rail sections. It is commonly used in heavy-haul railway applications, where the track undergoes significant loads and stresses. The clip is manufactured using high-quality materials, such as spring steel, which offer excellent strength and durability.
- Material: Typically made from forged spring steel.
- Hardness: Usually has a hardness of 42-47 HRC.
- Components: The complete E-clip system often includes the rail clips, rail shoulders, a rail pad, and insulators.
E Type Railway Fastening System
- First,place the pad in the rail seat after making sure both are clean and free of debris.
- Next install the rail and tamp the Rail Sleeper. The insulators are installed next (one each side of the rail) making sure the insulator is fully seated against the base of the rail.
- Then start the e-2055 clip from the right side of the shoulder by hand or set with a few taps of a sledge hammer. The clip is fully driven when there is approximately 3/8" gap between the edge of the shoulder and the rear arch of the clip. As with the wood installation, the e-series clip can be installed by mechanical means.
| Item included | Quantity | Material | Size | Remark |
|---|---|---|---|---|
| E clip | 2 | 60Si2MnA, 60Si2CrA | Dia. 16mm,18mm or 20mm (E1809, E2006,E2007,E2009,etc | Hardness: 44-48HRC |
| Toe Load: Dia.16mm: 500-700kgf; Dia.18mm:750-900kgf; Dia.20mm:1100-1400kgf | ||||
| Fatigue life: 5 millions cycles without breaking | ||||
| Standard: DIN17221, BS970, GB/T1222 | ||||
| Shoulder | 2 | QT500-7, QT450-10 | For UIC54, UIC60, 115RE, BS80lbs, BS100lbs, 50kg rail, 60kg rail, etc. | Note: Hardness of E-clip is 44-48HRC; Toe Load for E-clip is 500-700kgf (Dia.16mm); 750-900kgf(Dia.18mm); 1100-1400kgf(Dia.20mm); Fatigue life of E-clip is 5 millions cycles without breaking DIN17221, BS970, GB/T1222 qualified E-clip |
| Rail pad | 1 | HDPE, rubber or EVA | ||
| Insulator | 2 | Reinforced Nylon 66 (PA66) |
Rail fasteners Packaging & Delivery
The safe and timely delivery of rail fasteners is critical to project success. Our packaging and logistics systems are engineered to protect product integrity and meet precise schedules.
We employ robust, multi-layer packaging tailored to each fastener type. Using anti-corrosion wraps, reinforced cartons, and secured pallets, we ensure components withstand transit and storage. Every package is clearly labeled for easy identification and handling.
Our global delivery network offers flexible solutions via sea, air, or land. We manage all documentation and provide real-time shipment tracking. For major projects, we coordinate Just-In-Time delivery to align with your construction timeline, minimizing on-site inventory.
From our facility to your site, we ensure every fastener arrives protected, on time, and ready to install, supporting your project's efficiency and reliability.
what do GNEE RAIL offer?
GNEE RAIL enjoys a long-standing reputation in the railway industry, focusing on standard-compliant, precise solutions tailored to customer needs. With strict quality control, we guarantee OEM standards, offering technologically advanced products with stable performance, long service life, and competitive prices. Our continuously upgraded product range covers various sizes and models, while sufficient storage and flexible logistics ensure timely supply.
What do GNEE RAIL offer?
Rail Clip Production

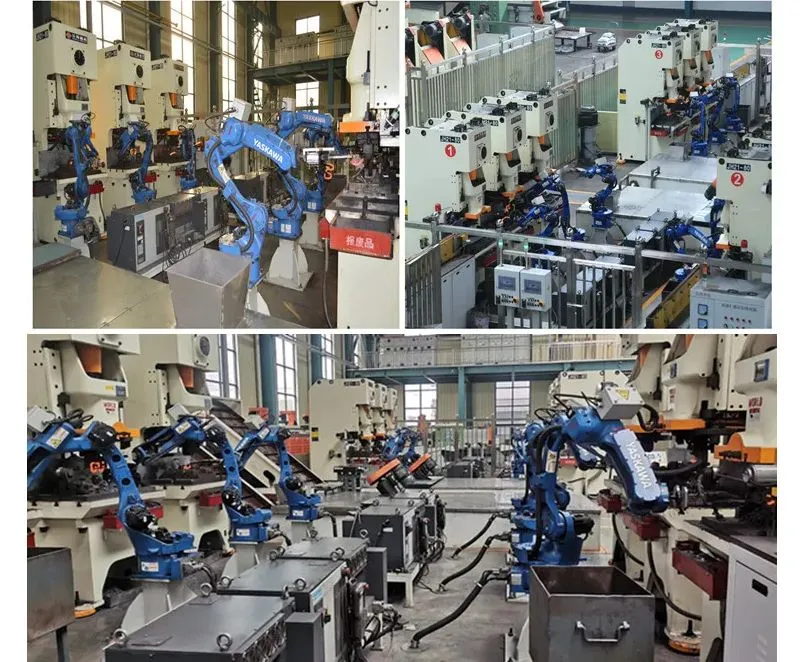

We have 4 automatic clip production lines with robot hands, which have the production volume for 60,000 pieces clips per day.
Avantages for robot hands production:
Guarantee the dimensions stability
Increase the quality
Maximum the production volume
Reduce labor cost
Surface Treatment
We are able to do various surface treatment with the most advanced technology. All the surface treatment is eco-friendly and finished in our own factory.
Electrostatic spraying for rail clips. Anti-corrosion for 2 years.
Darcromet for most rail fasteners. Anti-corrosion for 10 years.
Zinc-nickel alloy co-permeation for most fasteners. Anti-corrosion for 20 years.
Lost Foam Casting
We use lost foam casting process, the advantages as below:
Without Limits.Lost Foam enables geometrically complex cast parts to be created with the highest quality.
Dimensionally exact. – High dimensional accuracy and low tolerances.
Better Surface. Surface smooth and less flaws.
Without subsequent machining. Lost Foam is done without a core and without burrs so that there is almost no subsequent fettling work.
Weight reducing. Lost foam enables the creation of thin-walled, filigree cast product.
Environmentally friendly. Energy efficient casting process with low emissions and closed mould material circulation.
Plastic Injection Moulding
With advanced injection machines, we are able to offer:
Angle plate or rail insulator
Rail pad
Plastic dowel
Other products according to customer's needs
Why should choose GNEE, for We have abundant technical team,technology innovation,scientific management,and strict quality management. You are always welcomed to contact us for business discussion. GNEE RAIL is your ideal partner worthy of establishing long-term relationship for common growth and success.
