How to install QU100 crane rail

The QU100 crane rail is an industrial rail specifically designed for medium-sized crane tracks. Its installation must strictly follow standards and procedures to ensure the stability of the track system and the safe operation of lifting equipment.





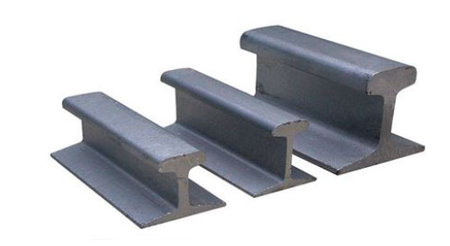

Classification			SIZE(mm)							theoretical weight
			height	bottom width		head width		waist depth
Crane rail		QU70	120	120		70		28		52.8
		QU80	130	130		80		32		63.69

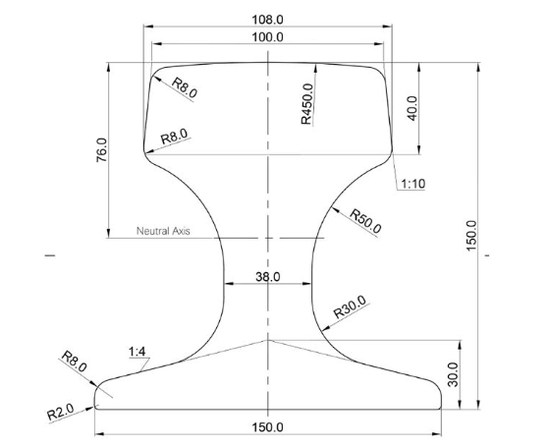

		QU100	150	150		100		38		88.96
		QU120	170	170		120		44		118.1



First, the sleepers should be inspected and positioned before construction. Concrete sleepers must be laid flat and stable, with the track gauge precisely meeting the design requirements. QU100 rails can be customized in length according to project needs. During construction, the rail ends must be neat and free of damage to facilitate smooth installation of rail fasteners and joints.

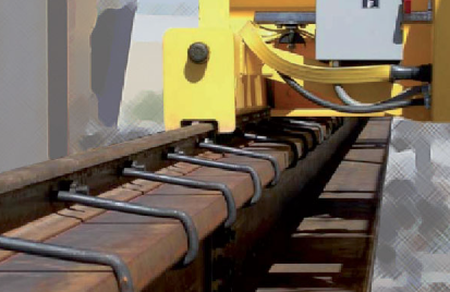

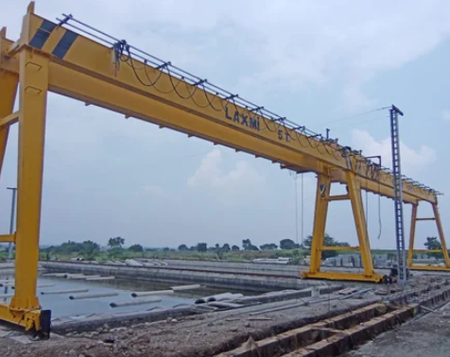

When laying the rails, place the rail on the sleepers first, using rail clamps or guide tools to fix its position, ensuring the rail is closely seated on the sleeper. QU100 rails are usually used with a rail fastening system, such as bolted or clipped fasteners, to secure the rail firmly to the sleeper and prevent lateral or longitudinal displacement during operation. During installation, the bolt torque must be evenly applied, ensuring stable clamping force that meets technical specifications.





At rail joints, standard fishplates or other compatible joint components should be used to ensure flat and tight rail end connections, minimizing wear from wheel load impact at the joint. After installation, the entire track should be re-checked for level and track gauge to confirm that rails are correctly positioned and securely fixed.





Additionally, protective measures should be applied during installation. In coastal or high-humidity environments, apply anti-rust coatings or oil to the rail surface to slow corrosion. In high-wear conditions, rubber pads or buffer devices can be used to reduce the impact from wheel loads.





GNEE RAIL not only provides high-quality QU100 crane rails, but also offers rail laying guidance, customized rail accessories, and installation technical support, ensuring that every track system is installed accurately, operates smoothly, and meets the requirements for long-term reliable industrial rail operation.



We Supply A Full Range of Crane Rails



Crane Rail Type	Standard	Size	Material	Standard Length
QU Series	Chinese YB/T 5055-2014	QU70, QU80, QU100, QU120	U71Mn, U75V	12m
A Series	German DIN536	A45, A55, A65, A75, A100, A120, A150	50Mn,U71Mn	10/12/15m
ASCE Series	American ASTM, AREMA	ASCE25, ASCE40, ASCE60, ASCE75, ASCE85, ASCE90, ASCE115, ASCE136	700/900A/1100	6-12m, 12-25m
UIC Series	International Union of Railways UIC860-0, EN-13674-1	UIC50, UIC54, UIC60	900A/1100	12-25m
BS Series	British BS11-1985	BS50'O',BS60A,BS60R, BS75A,BS75R,BS80A, BS100A,BS113A	700/900A	8-25m
JIS Series	Japanese JIS E1103/1101	15kg, 22kg, 30A, 37A, 50N, CR73, CR100	According to JIS	9-10m
AS Series	Australian AS 1085	31kg, 41kg, 47kg, 50kg, 53kg, 60kg, 66kg, 68kg, 73kg, 86kg, 89kg	900A/1100	8-25m
ISCOR Series	South African ISCOR	15kg, 22kg, 30kg, 40kg, 48kg, 57kg	700/900A	9-25m



If you have any needs for crane rail products, please feel free to contact us at GNEE RAIL. A one-stop service for all your crane track and accessories needs.
