What is the working principle of a railway elastic pad?
Dec 22, 2025

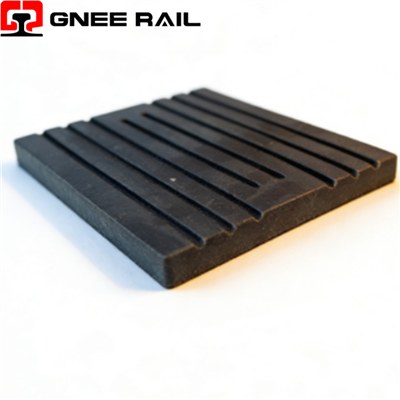

The rail pad, also known as bottom plate, is an elastic polyurethane pad assembled between the rails and sleeper to protect the top of the sleeper from wear and impact. The initial stiffness of the rail pad is not so high that the deformation of the rails under the load of the spring is very large. This mechanism ensures that the rail pad moves as close as possible to realize close contact with the track.
What is the working principle of a railway elastic pad?
A railway elastic pad works by cushioning impacts and absorbing vibrations between the rail and sleeper using its resilient material (like rubber or polyurethane) to convert mechanical energy, reducing shock, distributing wheel loads over a wider area, damping noise, preventing wear, and improving track stability and passenger comfort. It essentially acts as a shock absorber, protecting the track structure and enhancing operational smoothness and longevity.
Key Principles & Functions of railroad pad:
- Vibration Dampening & Shock Absorption: When a train passes, pads absorb the intense dynamic forces and vibrations, preventing them from being fully transmitted to the concrete sleeper and ballast bed.
- Energy Dissipation: The viscoelastic properties of the pad convert this mechanical energy into heat, which dissipates, reducing structural fatigue.
- Load Distribution: They spread the concentrated load from the wheel-rail contact point over a larger surface of the sleeper, preventing localized stress and wear.
- Noise Reduction: By absorbing vibrations, pads significantly cut down on the noise and vibration transmitted to the surrounding environment.
- Wear Protection: They cushion the interface between the rail and sleeper, preventing abrasive wear and damage to both components.
- Electrical Insulation: Some pads provide electrical isolation between the rail and concrete sleeper, preventing current leakage in signaling systems.
- Track Stability: By managing these forces, they help maintain track geometry, reduce rail movement, and enhance overall system stability.
Materials for rail pads
After years of rail pad manufacturing experience, we have developed a range of high performance flexible rail pads to meet rigid demand and a variety of application areas: from standard railways to heavy-duty lines, special rail pads for E-clamp track fastening systems and SKL type track fastening system. The materials includes HDPE / EVA / rubber material, which possess the following characteristics.
| Raw Material | Rubber, EVA, TPEE, HDPE |
| Standard | UIC, AREMA, TB/T2626-95 |
| Application | 43kg/m, 50kg/m, 60kg/m, 75kg/m,115RE, UIC54, UIC60, S49 |
| Model number | 43-7-7, 43-10-7, 50-7-9, 50-10-9, 60-10-17, 60-12-17 |
| Operating temperature | -50~70 degrees |
| Certificate | MSDS, ROHS, REACH |
| Notes | They should be stored in a clean, ventilated place. Don't be in direct sunlight, and keep away from the heat source and chemical reagent. Don't touch the oil, organic solvent, and other chemicals. Banned exposure. |
Our EVA/HDPE/rubber rail pads are with high elasticity, applying to types for rails such as rail UIC54, UIC60, BS80lbs,BS100lbs, and sizes as ordered. The pads can be customized with or without grooves, in various possible designs, depending on customers' requirements.
