What Role Do Rail Pads Play in Railways? Five Core Functions

What Do Rail Pads Do?

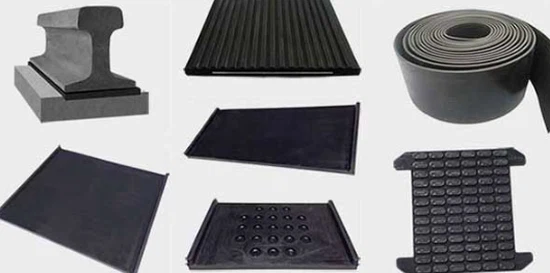

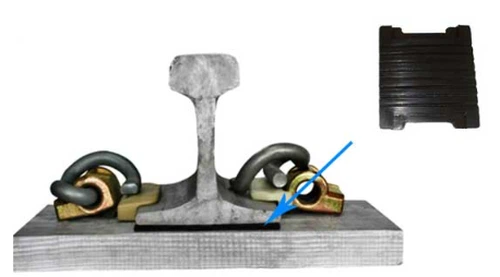

Rail pads sit between the rail foot and the sleeper or baseplate, and they perform five jobs at once. They absorb the impact of passing wheels so the sleeper seat is not hammered, they damp vibration and noise, they electrically isolate the rails on track-circuited lines, they tune the vertical stiffness of the track, and they protect the rail and fastener from wear. A track without pads - or with the wrong pads - suffers concrete spalling, loosening fasteners, noisy operation and shorter rail life.

The Five Core Functions of a Rail Pad

1. Rail Seat Protection

The rail foot bears the full wheel load through a small contact area. Without a pad, the concrete sleeper seat would be hammered to powder and the timber sleeper would crush and groove. The pad spreads the pressure and absorbs the high-frequency impact that causes spalling.

2. Vibration and Noise Damping

The pad converts part of the wheel impact energy into heat through internal friction, reducing the vibration transmitted into the sleeper, ballast and surrounding structures. This lowers structure-borne noise and improves ride comfort, which is why pad design matters near residential areas and in tunnels.

3. Electrical Insulation

On lines with track circuits, the two rails carry the signal current and must be electrically isolated from each other through the track structure. The pad is part of that isolation chain together with insulating shoulders and dowels; a pad with guaranteed insulation resistance keeps the signal circuit reliable.

4. Stiffness Tuning

Pad stiffness sets how much the rail deflects under load. A stiffer pad holds gauge and rail level tightly but transmits more impact; a softer pad damps better but deflects more. The fastening system standard defines the target stiffness, and the pad is designed to deliver it across the service temperature range.

5. Rail and Fastener Life Extension

By smoothing the dynamic forces, the pad reduces rail head fatigue, fastener loosening and sleeper wear. In practice, correct pad specification is one of the cheapest ways to extend maintenance intervals and lower the life-cycle cost of the track.

How Pad Specification Drives Performance

Pad Property	What It Controls	Selection Driver
Material	Damping, temperature range, insulation	EVA/TPU/rubber/EPDM per climate and duty
Hardness and stiffness	Vertical deflection, gauge holding, ride quality	Axle load, speed, fastening system standard
Thickness	Rail level, stiffness	Fastening geometry, rail height
Surface pattern	Contact area, stiffness, position holding	System design, supplier catalogue
Insulation rating	Track circuit reliability	Signalling requirement

Pads in the Complete Fastening System

The pad works as part of a matched set: clip, shoulder, dowel and pad are designed and tested together. Changing only one component, for example fitting a softer pad into a system designed for a stiffer one, changes the whole behaviour of the fastening and can damage the sleeper. When sourcing pads, buyers should match them to the fastening system type (for example Type I, Type II or Type III systems) and, where possible, buy the set from one supplier.

Frequently Asked Questions

Why can't rails be fixed directly to the sleepers?

Direct rigid fixing would concentrate the entire wheel impact on the sleeper seat, spalling concrete and crushing timber, and would transmit all vibration into the structure. The pad introduces elasticity that spreads the load and absorbs energy, which is essential for sleeper life and ride quality.

Do rail pads reduce train noise?

Yes. Pads reduce the vibration that is transmitted into the track structure and radiated as noise. The effect is strongest in the frequency range that bothers residents near the line, which is why pads are a standard part of noise-control measures on urban railways.

How does a rail pad provide electrical insulation?

Most pad materials are natural insulators, and insulating grades are formulated with guaranteed resistance. The pad, together with insulating shoulders and dowels, breaks the electrical path between the rail and the sleeper hardware, keeping the two rails isolated for the signal circuit.

What happens if a rail pad is too soft?

A too-soft pad lets the rail deflect excessively under load. This increases rolling resistance and wear, can loosen the fasteners through repeated flexing, and in extreme cases causes rail rollover risk on sharp curves. Pad stiffness must be matched to the duty.

How often should rail pads be replaced?

There is no universal interval; it depends on traffic, axle load and material. Pads are normally replaced at fastener or sleeper maintenance cycles, or when inspection shows thinning, cracking or loss of stiffness. Track-circuited lines also replace pads when insulation tests fail.

Are rail pads used on high-speed railways?

Yes, and they are critical there. High-speed lines use pads tuned for very consistent stiffness so that the track geometry stays stable at speed, with insulation and damping requirements at least as demanding as on conventional lines. The pad is part of the approved fastening system for the line.
